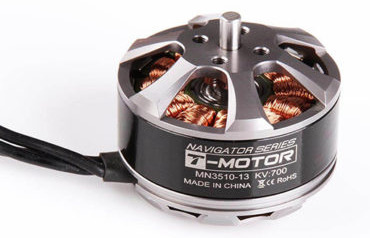

T-Motor-MN3510-KV700

Propeller: 13x4.4 P14x4.4 (CF)

Throttle (%)	Torque (N·m)	Thrust (g)	Voltage (V)	Current (A)	RPM	Electrical Power (W)	Motor Efficiency (%)	Overall Efficiency (g/W)
20	0.01	70	14.82	0.27	1669	4.05	56.40	17.50
25	0.02	118	14.82	0.54	2162	8.07	67.04	15.39
30	0.03	181	14.82	0.83	2627	12.32	69.75	14.82
35	0.04	257	14.81	1.35	3110	20.05	73.70	12.99
40	0.06	340	14.81	1.88	3546	27.79	74.77	12.26
45	0.07	427	14.80	2.61	3974	38.65	76.51	11.06
50	0.09	526	14.80	3.47	4381	51.39	76.29	10.25
55	0.10	631	14.80	4.45	4787	65.87	77.18	9.60
60	0.12	740	14.79	5.37	5196	79.43	81.06	9.32
65	0.14	862	14.78	6.75	5572	99.75	80.15	8.65
70	0.16	990	14.77	8.25	5949	121.88	80.59	8.13
75	0.18	1131	14.76	9.86	6316	145.51	80.54	7.77
80	0.20	1260	14.75	11.43	6657	168.64	82.45	7.52
85	0.22	1405	14.74	13.35	6945	196.80	82.10	7.16
90	0.24	1541	14.72	15.54	7330	228.69	80.94	6.74
95	0.26	1689	14.71	17.87	7652	262.84	80.38	6.43
100	0.29	1847	14.69	20.54	8000	301.68	80.39	6.12

Propeller: 14x4.8 P14x4.8 (CF) https://store.tmotor.com/product/polish-carbon-fiber-14x4_8-prop.html

Throttle (%)	Torque (N·m)	Thrust (g)	Voltage (V)	Current (A)	RPM	Electrical Power (W)	Motor Efficiency (%)	Overall Efficiency (g/W)
20	0.02	83	14.82	0.31	1624	4.67	63.01	18.98
25	0.03	146	14.82	0.62	2114	9.25	67.59	15.84
30	0.04	221	14.82	1.07	2564	15.80	70.48	13.99
35	0.06	315	14.81	1.70	2970	25.22	70.83	12.54
40	0.08	413	14.80	2.46	3429	36.49	75.08	11.34
45	0.09	528	14.80	3.34	3814	49.48	75.21	10.72
50	0.12	657	14.80	4.49	4212	66.47	78.41	10.01
55	0.14	788	14.78	5.81	4536	85.88	76.79	9.20
60	0.16	927	14.78	7.26	4885	107.24	76.81	8.65
65	0.18	1059	14.77	8.83	5234	130.44	77.57	8.12
70	0.21	1196	14.75	10.39	5571	153.32	78.56	7.83
75	0.24	1359	14.75	12.71	5932	187.41	78.45	7.30
80	0.26	1522	14.73	14.95	6227	220.13	76.71	6.91
85	0.28	1679	14.71	17.33	6506	254.88	76.15	6.59
90	0.31	1844	14.70	20.07	6808	295.01	75.58	6.25
95	0.34	2015	14.68	23.03	7095	338.03	74.87	5.96
100	0.37	2193	14.66	26.43	7408	387.35	74.36	5.66

Propeller: 13x5.0 MS1302 (Plastic) https://store.tmotor.com/product/ms1302-polymer-straight.html

Throttle (%)	Torque (N·m)	Thrust (g)	Voltage (V)	Current (A)	RPM	Electrical Power (W)	Motor Efficiency (%)	Overall Efficiency (g/W)
20	0.02	79	14.82	0.34	1615	5.05	60.10	16.14
25	0.03	138	14.82	0.65	2106	9.56	69.01	14.67
30	0.04	215	14.81	1.09	2551	16.08	70.68	13.41
35	0.06	301	14.81	1.72	2998	25.52	74.12	11.85
40	0.08	405	14.81	2.42	3444	35.84	77.53	11.38
45	0.10	511	14.80	3.40	3847	50.29	76.84	10.22
50	0.11	608	14.79	4.31	4213	63.78	76.86	9.54
55	0.13	718	14.78	5.46	4580	80.68	77.21	8.91
60	0.15	842	14.78	6.78	4957	100.23	78.26	8.41
65	0.17	972	14.77	8.42	5333	124.38	78.35	7.82
70	0.20	1106	14.76	10.04	5653	148.26	78.18	7.48
75	0.22	1264	14.74	12.58	6032	185.45	76.50	6.84
80	0.25	1402	14.73	14.29	6324	210.45	77.80	6.66
85	0.27	1540	14.72	16.43	6624	241.81	77.70	6.37
90	0.30	1700	14.70	19.12	6931	281.02	77.07	6.05
95	0.32	1859	14.68	21.71	7241	318.71	77.16	5.83
100	0.35	2028	14.66	25.09	7564	367.81	76.16	5.51

Propeller: 13.4x4.8 MF1302 (Plastic Folding) https://store.tmotor.com/product/mf1302-polymer-folding-prop.html

Throttle (%)	Torque (N·m)	Thrust (g)	Voltage (V)	Current (A)	RPM	Electrical Power (W)	Motor Efficiency (%)	Overall Efficiency (g/W)
20	0.01	78	14.82	0.31	1630	4.63	47.02	17.03
25	0.03	125	14.82	0.64	2108	9.55	63.27	13.18
30	0.04	195	14.81	1.01	2572	15.01	70.77	13.05
35	0.06	290	14.81	1.63	3036	24.14	74.13	12.09
40	0.07	389	14.81	2.36	3453	34.89	75.28	11.17
45	0.09	494	14.80	3.16	3864	46.78	78.79	10.63
50	0.11	601	14.79	4.33	4243	64.10	75.23	9.44
55	0.13	707	14.79	5.28	4617	78.04	77.90	9.06
60	0.14	829	14.77	6.53	4995	96.50	78.60	8.60
65	0.17	955	14.77	8.05	5369	118.94	78.31	8.04
70	0.19	1099	14.76	9.74	5720	143.71	78.99	7.65
75	0.21	1252	14.74	11.71	5955	172.71	77.34	7.25
80	0.24	1393	14.73	13.67	6383	201.36	78.54	6.92
85	0.26	1534	14.72	15.88	6699	233.68	77.98	6.57
90	0.28	1688	14.71	18.25	7008	268.31	77.78	6.31
95	0.31	1856	14.68	21.05	7324	309.04	77.21	6.01
100	0.34	2015	14.67	23.99	7648	351.88	77.03	5.73
