iFlight

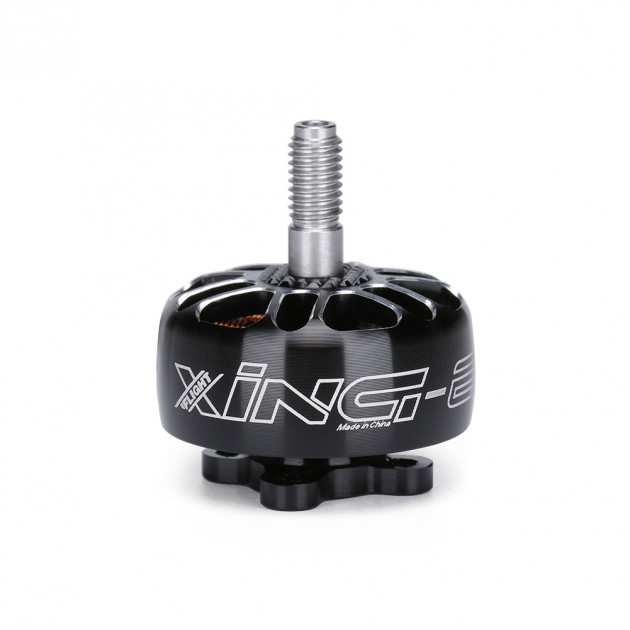

Motor - https://www.rotorama.com/product/iflight-xing-e-pro-2207-2450kv
Propeller: Gemfan 6042-2 Flash
https://www.rotorama.com/product/gemfan-6042-2-flash
| Throttle (%) | Torque (N·m) | Thrust (g) | Voltage (V) | Current (A) | RPM | Electrical Power (W) | Motor Efficiency (%) | Overall Efficiency (g/W) |
|---|---|---|---|---|---|---|---|---|
| 20 | 0.02 | 157 | 16.26 | 1.90 | 8017 | 30.92 | 52.99 | 5.10 |
| 25 | 0.03 | 216 | 16.23 | 2.75 | 9232 | 44.64 | 55.86 | 4.86 |
| 30 | 0.03 | 284 | 16.20 | 3.93 | 10346 | 63.62 | 57.48 | 4.46 |
| 35 | 0.04 | 351 | 16.16 | 5.08 | 11313 | 82.09 | 58.42 | 4.28 |
| 40 | 0.05 | 424 | 16.11 | 6.59 | 12331 | 106.13 | 58.84 | 4.00 |
| 45 | 0.06 | 497 | 16.06 | 8.10 | 13331 | 130.02 | 60.57 | 3.83 |
| 50 | 0.06 | 576 | 16.00 | 10.34 | 14447 | 165.49 | 59.40 | 3.49 |
| 55 | 0.07 | 662 | 15.93 | 12.67 | 15312 | 201.92 | 58.81 | 3.28 |
| 60 | 0.08 | 753 | 15.86 | 15.55 | 16195 | 246.70 | 57.87 | 3.05 |
| 65 | 0.09 | 800 | 15.76 | 19.61 | 16670 | 309.04 | 50.27 | 2.59 |
| 70 | 0.10 | 882 | 15.69 | 22.68 | 17419 | 355.75 | 50.48 | 2.48 |
| 75 | 0.11 | 977 | 15.63 | 25.19 | 18367 | 393.87 | 53.29 | 2.48 |
| 80 | 0.12 | 1076 | 15.59 | 27.25 | 19191 | 424.75 | 56.94 | 2.54 |
| 85 | 0.13 | 1158 | 15.51 | 30.85 | 19854 | 478.46 | 56.42 | 2.42 |
| 90 | 0.14 | 1245 | 15.42 | 34.80 | 20492 | 536.71 | 55.72 | 2.32 |
| 95 | 0.15 | 1331 | 15.34 | 39.10 | 21072 | 599.95 | 54.70 | 2.22 |
| 100 | 0.16 | 1442 | 15.26 | 43.97 | 21865 | 671.03 | 55.04 | 2.15 |
Propeller: Foxeer Donut 5145
https://www.rotorama.com/product/dalprop-donut-5145
| Throttle (%) | Torque (N·m) | Thrust (g) | Voltage (V) | Current (A) | RPM | Electrical Power (W) | Motor Efficiency (%) | Overall Efficiency (g/W) |
|---|---|---|---|---|---|---|---|---|
| 20 | 0.02 | 133 | 16.49 | 1.82 | 10269 | 30.01 | 54.61 | 4.43 |
| 25 | 0.02 | 181 | 16.46 | 2.68 | 11759 | 44.10 | 57.82 | 4.12 |
| 30 | 0.03 | 232 | 16.43 | 3.55 | 13069 | 58.42 | 60.84 | 3.98 |
| 35 | 0.03 | 283 | 16.40 | 4.50 | 14274 | 73.76 | 63.68 | 3.84 |
| 40 | 0.04 | 338 | 16.37 | 5.69 | 15464 | 93.07 | 64.66 | 3.63 |
| 45 | 0.04 | 385 | 16.33 | 6.76 | 16434 | 110.38 | 65.54 | 3.49 |
| 50 | 0.05 | 437 | 16.29 | 8.05 | 17396 | 131.07 | 66.30 | 3.33 |
| 55 | 0.05 | 495 | 16.25 | 9.53 | 18362 | 154.76 | 66.52 | 3.20 |
| 60 | 0.06 | 566 | 16.19 | 11.54 | 19428 | 186.79 | 66.85 | 3.03 |
| 65 | 0.07 | 626 | 16.14 | 13.36 | 20416 | 215.67 | 67.44 | 2.90 |
| 70 | 0.08 | 699 | 16.07 | 15.62 | 21473 | 251.07 | 68.49 | 2.79 |
| 75 | 0.09 | 795 | 15.99 | 19.00 | 22743 | 303.82 | 68.42 | 2.62 |
| 80 | 0.10 | 882 | 15.91 | 22.13 | 23824 | 352.02 | 68.84 | 2.51 |
| 85 | 0.11 | 971 | 15.82 | 25.76 | 24822 | 407.61 | 68.58 | 2.39 |
| 90 | 0.12 | 1048 | 15.75 | 29.43 | 25661 | 463.52 | 67.85 | 2.26 |
| 95 | 0.13 | 1125 | 15.68 | 33.19 | 26582 | 520.25 | 68.31 | 2.16 |
| 100 | 0.14 | 1210 | 15.61 | 37.57 | 27352 | 586.38 | 67.79 | 2.06 |
